MCA Top mounted roller shutters

MCA UNIBOX roller shutters

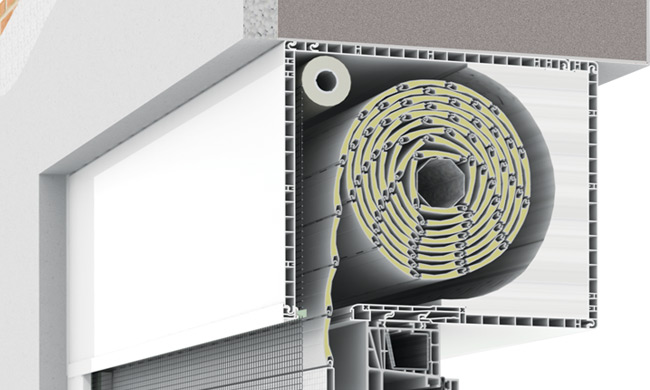

The main advantage of the MCA UNIBOX roller shutters is that plaster-base sheeting can be used in order to hide the box on the outside and on the inside. MCA UNIBOX roller shutters inspection access is made from inside.

Benefits

  • Mild temperature in your house during the hot summer days
  • Eco friendly cooling solution
  • Healthy cooling solution
  • Discourage intruders and provides burglary resistance
  • Quick protection of the window in case of heavy rainfall, hail and storm.
  • Sound insulation - roller shutters minimize all type of sounds, bothersome noises remain outside
  • In many cases the usage of a solar shading system can make an active cooling system superfluous.
  • Wide variety of colors and wood imitation
  • Manual or electric command
  • Insect reppeling screens can be integrated in the system
  • Provents heating energy loss during wintertime
  • Reduce by 10% the heating energy consumtion

Video presentations

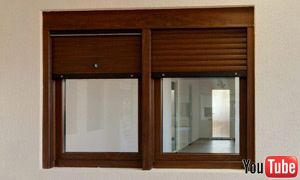

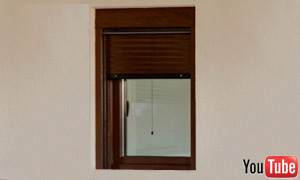

  • UNIBOX - MCA Top mounted roller shutter with integrated insect screen and ribbon drive

  • UNIBOX - MCA Top mounted double roller shutter with integrated insect screen and ribbon & crank drive

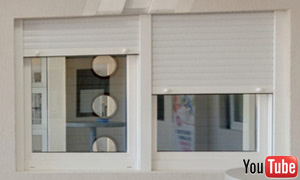

  • UNIBOX Plus - MCA Top mounted roller shutter with ribbon drive

  • UNIBOX Plus - MCA Top mounted double roller shutter with ribbon drive

Accessories and drivers

  • Ribbon

  • Crank

  • Remote Control

  • Remote control with LCD display

  • Remote control with LCD display

  • Wall mounted wireless button

Colors for 37 mm slats

White
900 - RAL 9016

Cream white
919 - RAL 1015

Light Wood
915

Golden
920

Silver
916 - RAL 9006

Grey
901 - RAL 7038

Dark Wood 1
907

Dark Wood 2 (walnut)
910

Silver grey Rafaello
911 - RAL 7015

Dark Brown
921

Walnut
925

Goalden Oak
924

Brown red
912 - RAL 8017

Brown
903 - RAL 8014

Mahogany
926

Wenge
928

Silver Bordeaux Rafaello
914 - RAL 8016

Green
906 - RAL 6005

Blue
904 - RAL 5010

Grey Anthracite
957 - RAL 916



Tehnical details MCA roller shutters

UNIBOX - MCA Front mounted roller shutters

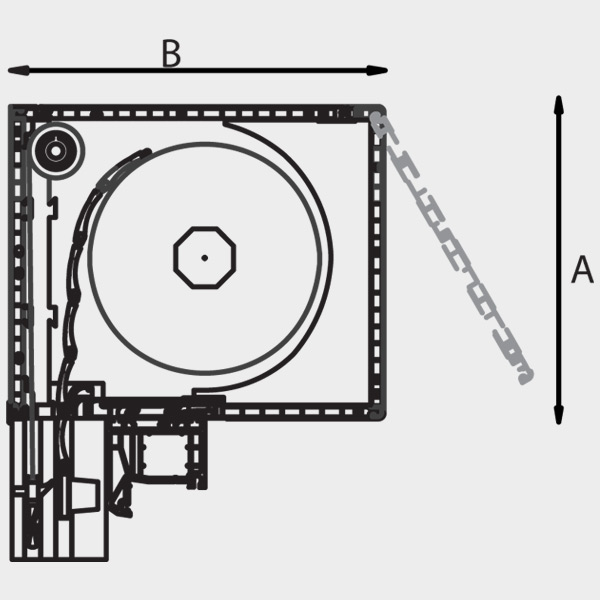

Slate Box size Guide rail size Max.
width		 Max. Hight Max. Surface
37mm A B C D 2600mm Ribbon Crank/Spring/Electric Ribbon Crank/Spring/Electric

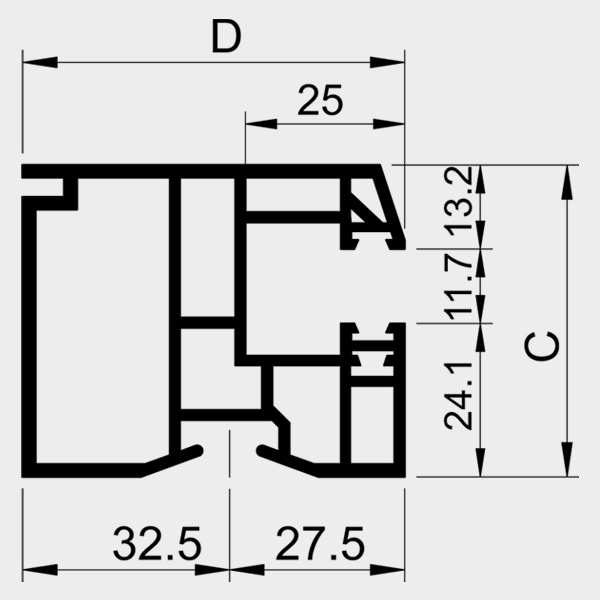

155mm 180mm 49mm 60mm - simplu

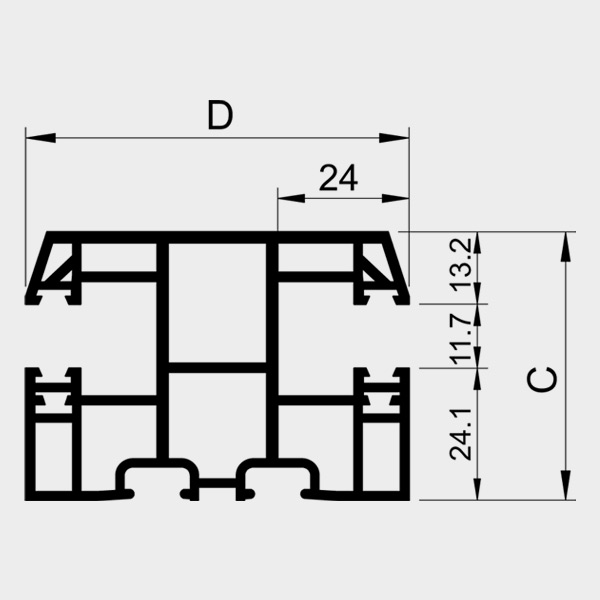

70mm - “H”		 1600mm 1350mm 2.5mp 5mp
181mm 206mm 2250mm 2150mm
220mm 245mm 3600mm 3400mm

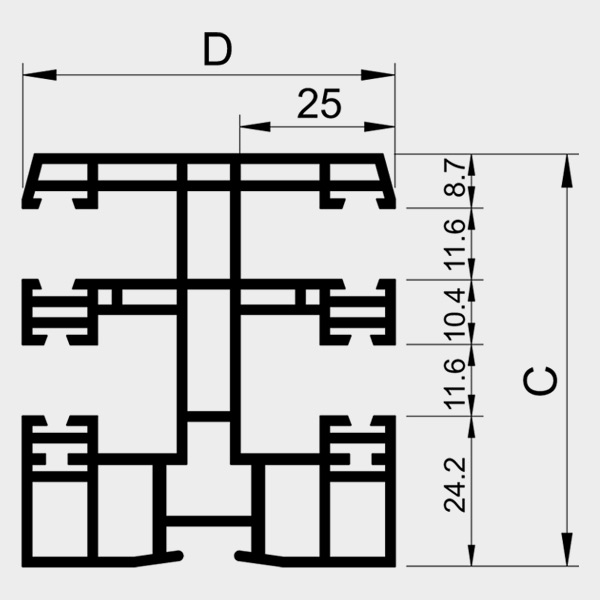

UNIBOX - MCA Top mounted roller shutter with integrated insect screen

Slate Box size Guide rail size Max.
width		 Max. Hight Max. Surface
37mm A B C D 2600mm Ribbon Crank/Spring/Electric Ribbon Crank/Spring/Electric
155mm 199mm 66.5mm 60mm 1350mm 1150mm 2.5mp 5mp
181mm 224mm 2250mm 2150mm
220mm 263mm 2500mm 2500mm

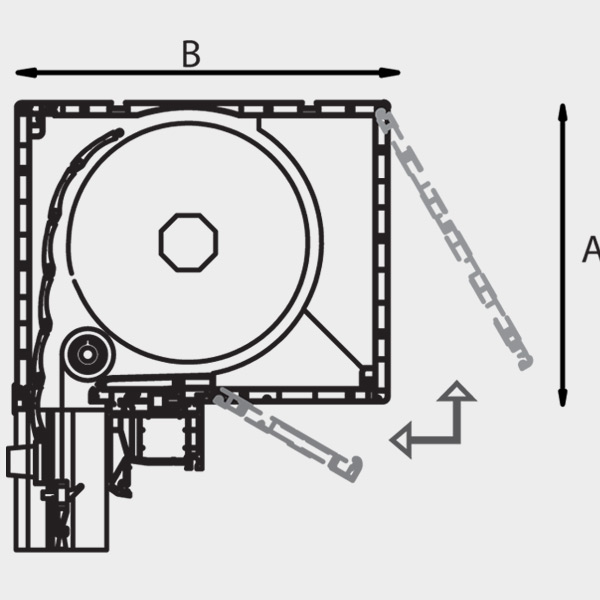

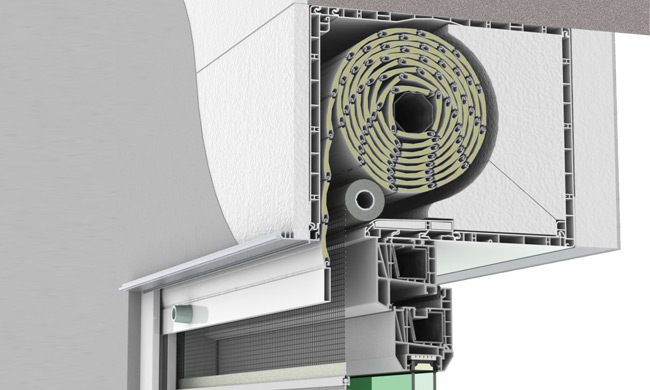

UNIBOX Plus - MCA Top mounted roller shutter

Slate Box size Guide rail size Max.
width		 Max. Hight Max. Surface
37mm A B C D 2600mm Ribbon Crank/Spring/Electric Ribbon Crank/Spring/Electric
175mm 220mm 49mm 60mm-simplu
70mm - “H”		 1550mm 1330mm 2.5mp 5mp
200mm 220mm 2660mm 2360mm
240mm 255mm 4250mm 4030mm

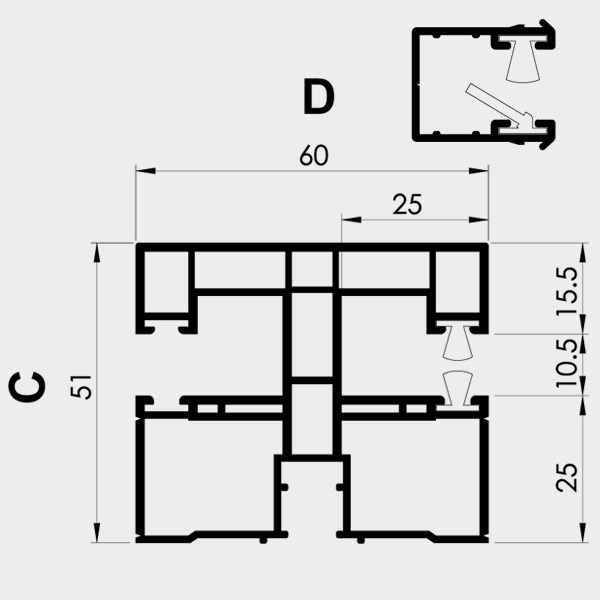

UNIBOX Plus - MCA Top mounted roller shutter with integrated insect screen

Slate Box size Guide rail size Max.
width		 Max. Hight Max. Surface
37mm A B C D 2600mm Ribbon Crank/Spring/Electric Ribbon Crank/Spring/Electric
175mm 220mm 66.5mm 60mm 1550mm 1330mm 2.5mp 5mp
200mm 220mm 2660mm 2360mm
240mm 255mm 4250mm 4030mm
